Custom Quick Release Drop Mechanism Drop Tester Release Hooks AC220V / 50Hz

Name: Custom Quick Release Drop Mechanism Drop Tester Release Hooks AC220V 50Hz
Brand: LABTONE
Price: 1 USD

Quality Custom Quick Release Drop Mechanism Drop Tester Release Hooks AC220V / 50Hz wholesale

Brand Name : LABTONE

Model Number : KDT2000

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Supply Ability : 50 Sets / Month

Delivery Time : 30-35 Work Days

Packaging Details : Carton Or Polywood Case

Weight Capacity : 200kg～1500kg

Power Required : AC220V / 50Hz

Compressed Air : 0.5 Mpa-0.7 Mpa

Lifting Device : Customer Supplied

Machine Weight : 16 kg

Machine Size : 345 x 235 x 145 mm

Contact Now

Release Hook For Drop Test Drop Tester Release Hooks Manufacture

Introduction

Release Hooks help determine the ability of a product or container to withstand impact loads which may be imposed upon such items during normal transit conditions.

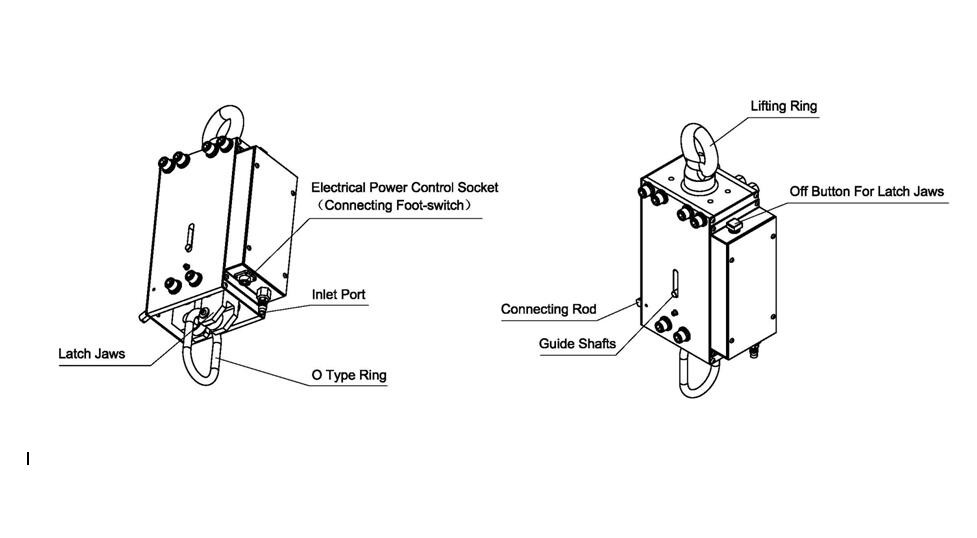

The KDT2000 consists of a quick-release mechanism, lifting ring, and foot-switch for initiating the drop. Straps wrapped around the test item form a sling that attached to the O type ring, which is placed in the latch jaws of the quick-release mechanism. The quick-release mechanism and test package are then lifted to a pre-determined height by a fork-lift, winch, or other lifting device (not included). Press the Remote Foot-switch causing the latch jaws to open and the package to fall.

Technical Specification

Weight Capacity: 200kg～1500kg

Power Required: AC220V / 50Hz ( or according to customer’s need)

Compressed Air: 0.5Mpa～0.7Mpa

Lifting Device: Customer Supplied

Weight of KDT2000 : 11kg ( excluding foot-switch, which is 5kg)

Size of KDT2000: 345 x 235 x 145 mm

Size of foot-switch: 270 x 200 x220 mm ( Lx D x H)

DROP WITH CONFIDENCE

Release Hook Series provide an efficient and ergonomic method of determining the ability to withstand the various impacts of handling and shipment. The effects of manual stacking, loading, and dropping are easily duplicated through the ability of perform laboratory controlled drop tests.

RELEASE HOOK Operation

Release Hook operation is easy! Simply secure the release hook mechanism to the overhead hoist using the lifting ring, fasten the belt straps to your package and attach the test load to the release hook. Raise the test load to the predetermined drop height and initiate the drop sequence by using the foot activated drop switch.

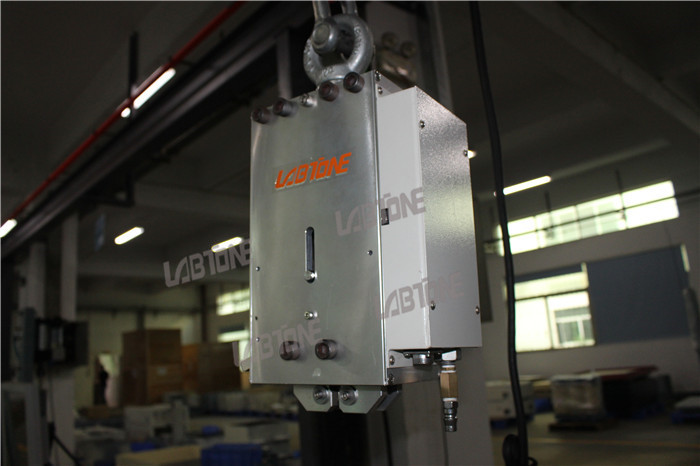

Detailed Picture

Custom Quick Release Drop Mechanism Drop Tester Release Hooks AC220V / 50Hz

Our Services

1,12 months warranty, lifelong maintenance. If any quality problems on our side occured in this period. we promise we will give you a reply within 48 hours and solution provide within 2 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service,the transport and travel expense shall be borne by customer.

2,Help choose right model with series of service

3,Customization service-OEM,Design service,Buyer lable

4,Cooperate with measuring if need the third party verification

Welcome to visit Labtone company

Contact info:

Mobile &WhatsApp: 86-15989907254 | Skype ID;Sophia.zhou306 Email : sales05@labtone.cn
